■	Ideally suited for production balancing
■	Can handle excessive initial unbalance
■	First-run readout, no trial weights required
■	Rigid construction, fewer moving parts
■	Automatic additional turn of a rotor on a required angle
■	Touch screen balancing computer, with all accessories needed for balancing

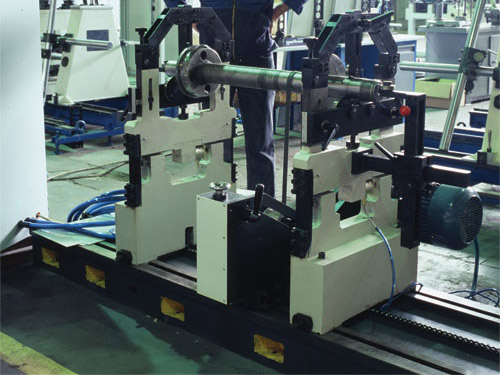

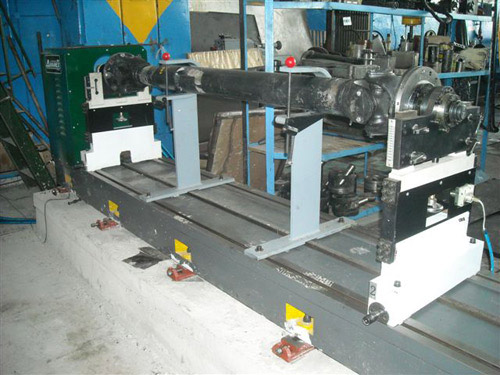

Horizontal Hard-Bearing Balancing Machines


Universal balancing machines for rotors with masses up to 3 tons.

Standard Specifications	BT-150	BT-300	BT-1000	BT-3000
Maximum weight capacity, kg	150	300	1000	3000
Max. rotor diameter, mm	1050	1130	1600	1600
Distance between the centers of rotor bearing journals, mm	150 - 2200	200 - 2400	200 - 3100	200 - 3100
Shaft journal diameter range, mm	10 - 180	10 - 180	15 - 290	15 - 290
Sensitivity, g·mm/kg	0.1
Drive motor	AC 1.1 kW	AC 2.2 kW	AC 7.5 kW	AC 15 kW
Drive type	Belt
Standard base length, mm	2500	3000	3500	3500

Specifications are for standard machines; modifications are available to meet specific requirements.
