Horizontal soft-bearing balancing machines for medium weight rotors


Universal soft-bearing balancing machines for highly precise balancing of a wide spectrum of rotors with masses from 10 up to 10000 kg.
  Standard Specifications BM-1000 BM-3000 BM-5000 BM-10000
Weight Capacity, kg 10 - 1000 30 - 3000 50 - 5000 80 - 10000
Max. rotor diameter, mm 2000 2300 2300 2600
Distance between the centers of rotor bearing journals, mm 230 - 2840 300 - 2650 350 - 2630 450 - 5600
Shaft journal diameter range, mm 15 - 280 20 - 380 20 - 380 25 - 420
Sensitivity, gmm/kg 0.1
Balancing speed, rev/min 350 - 1500
Drive motor AC 2.2 kW AC 5.5 kW AC 11 kW AC 15 kW
Drive type Belt (standard) / Belt + End (option)
Standard base length, mm 3000 3000 3000 6000
Machine weight, kg 1320 1800 1900 3600
  PDF PDF PDF PDF

Specifications are for standard machines; modifications are available to meet specific requirements.
Highest balance sensitivity - up to 0.1 gmm/kg
Broad rotor weight range in each machine
Anti-friction bearing work supports eliminate time-consuming alignment procedures. Bearings have a flat, wide-contact surface to carry rotors without damaging journals
Balance at lower and safer speeds
The machine installed without foundations, not required expensive construction of special concrete foundations
Transportable, modular design
Special screw-jacks for loading heavy rotors on the balancing machine
Automatic additional turn of a rotor on a required angle
Touch screen balancing computer, with all accessories needed for balancing
The highest quality of manufacturing

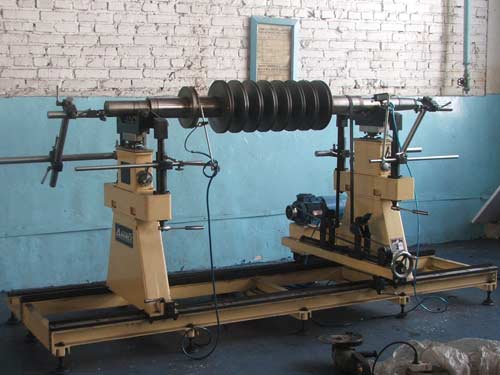

Balancing Machine BM-1000

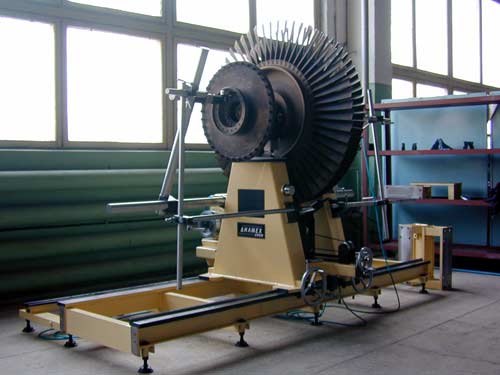

Balancing Machine BM-3000

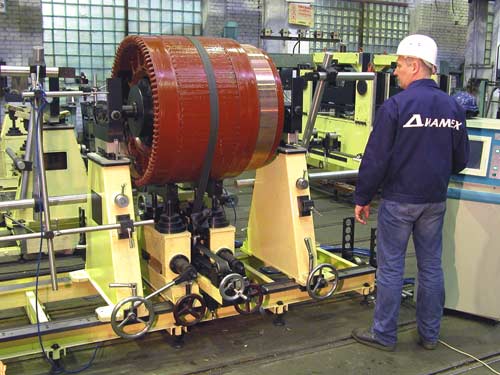

Balancing Machine BM-3000

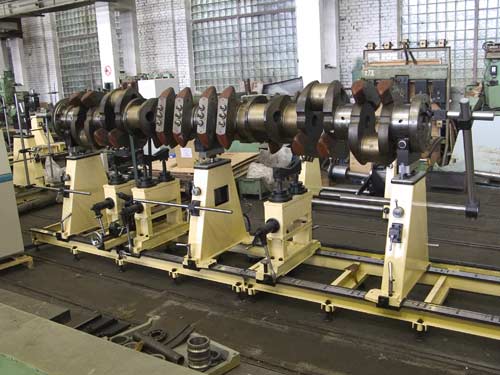

Balancing Machine BM-3000

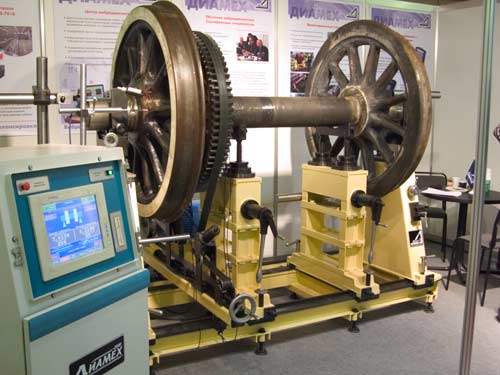

Balancing Machine BM-3000

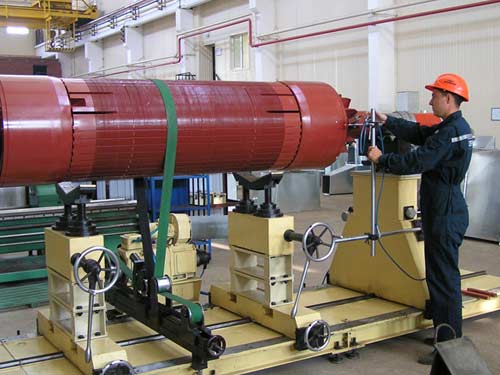

Balancing Machine BM-10000

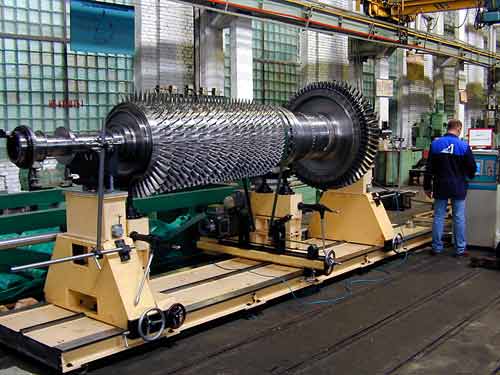

Balancing Machine BM-10000
