Horizontal soft-bearing balancing machine for roll balancing


High precision balancing machine for pulp and paper mills, steel mills. Roll balancing with masses up to 20 tons.
  Standard Specifications BM-20000
Weight Capacity, kg 1000 - 20000
Max. rotor diameter, mm 2500
Distance between the centers of rotor bearing journals, mm 1000 - 12000
Shaft journal diameter range, mm 90 - 350
Sensitivity, gmm/kg 0.2
Balancing speed, rev/min 160 - 180
Drive motor AC 22 kW
Drive type Belt (standard)
Belt+End (option)
Standard base length, mm 12000
Machine weight, kg 9000

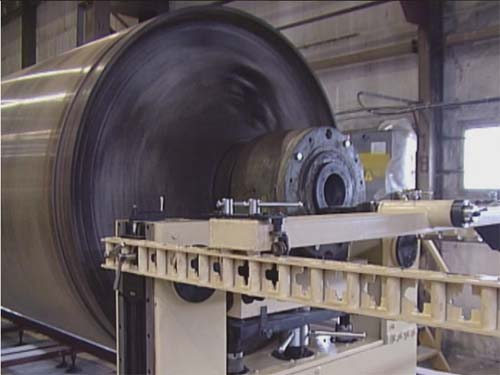

Balancing Machine BM-20000 for Roll Balancing

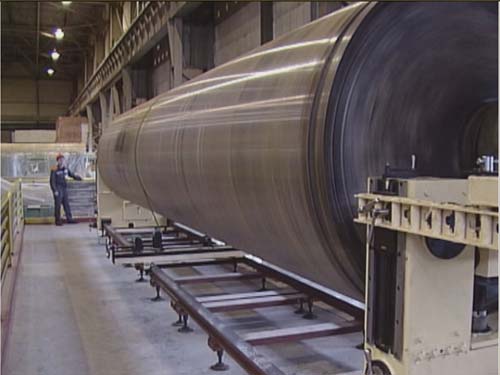

Balancing Machine BM-20000 for Roll Balancing

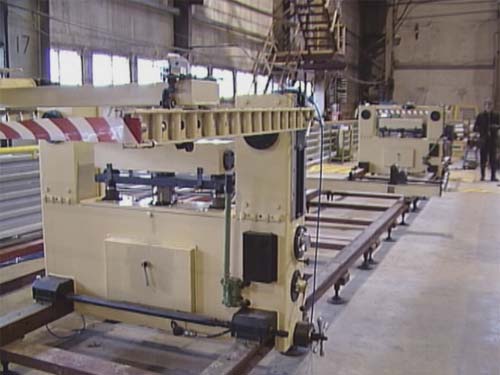

Balancing Machine BM-20000 for Roll Balancing
Highest balance sensitivity - up to 0.2 gmm/kg
Anti-friction bearing work supports eliminate time-consuming alignment procedures. Bearings have a flat, wide-contact surface to carry rotors without damaging journals
Balance at lower and safer speeds
The machine installed without foundations, not required expensive construction of special concrete foundations
Transportable, modular design
Automatic additional turn of a rotor on a required angle
Touch screen balancing computer, with all accessories needed for balancing
The highest quality of manufacturing
DIAMECH 2000 Ltd.
Vibration Diagnostics & Balancing Machines
Specifications are for standard machine; modifications are available to meet specific requirements.
