Horizontal soft-bearing balancing machines for extremely small and lightweight rotors


High precision balancing machines for small lightweight rotors such as miniature armatures, miniature fans, turbochargers, gyroscopes and complete assemblies.
Highest balancing accuracy - up to 0.05 g·mm/kg
The machine can be mounted on a rigid tabletop or workbench
  Standard Specifications BM-010C BM-010
Weight Capacity, kg 0.005 - 3 0.03 - 8
Max. rotor diameter, mm 90 170
Distance between the centers of rotor bearing journals, mm 10 - 410 40 - 410
Shaft journal diameter range, mm 2 - 50 2 - 60
Sensitivity, g·mm/kg 0.05 0.05
Balancing speed, rev/min 350 - 5000 350 - 5000
Drive motor AC 0.075 kW AC 0.1 kW
Drive type Belt Belt
Standard base length, mm 500 500
Machine weight, kg 35 35

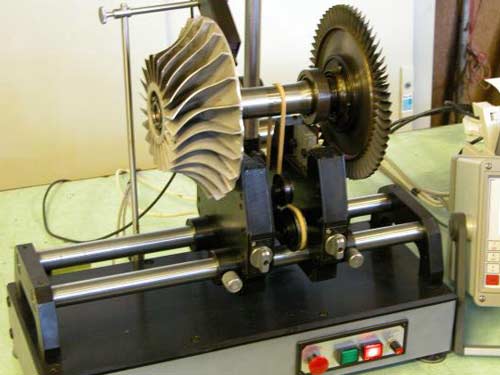

Balancing Machine BM-010

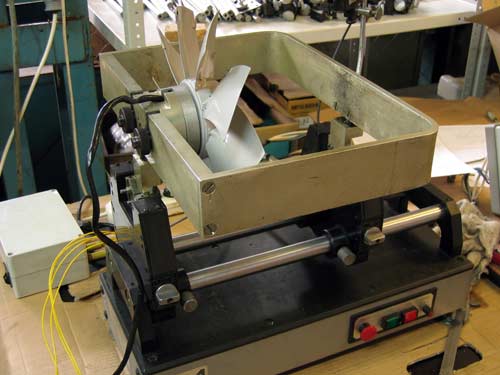

Balancing Machine BM-010

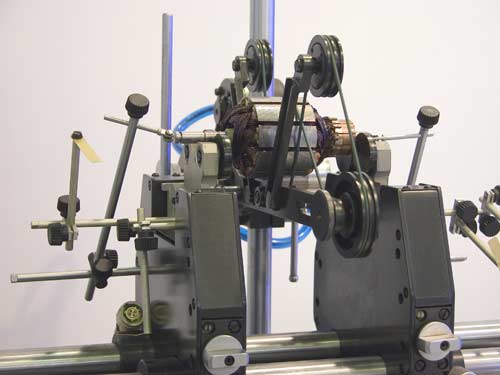

Balancing Machine BM-010
Balancing Machine BM-010
DIAMECH 2000 Ltd.
Vibration Diagnostics & Balancing Machines
Specifications are for standard machines; modifications are available to meet specific requirements.
